Vehicle seats
Car seats designed for swivel seats and seat lifts.

Seats made with a purpose

Why not use the original seat in the car, you ask. Well, the simple answer is that the original seat is not designed to rotate out of the car and would most likely get stuck in doing so. Our seats are designed to be space-efficient when rotating yet still retain as much comfort as possible.

Furthermore, when adapting a vehicle it's often necessary to also adapt the seat so it can give the intended user the best possible support. Keep in mind that seat adaptations are not only for user comfort but also for safety. For example, preventing the user from sliding down in the seat, ultimately ending up in a position where the function of the seat belt is compromised. The original seats are usually not customizable, certainly not to the same extent as our seats.

The seats on this page are all crash-test approved in combination with compatible products.

Isolated image of the BEV seat.

BEV seat
Ergonomic low built seat, specially designed for easy individual adaptation using a variety of options.

Learn more

Isolated image of the Compact seat.

Compact seat
A comfortable car seat with a low profile.

Learn more

Isolated image of the Recaro seat.

Recaro seat
Comfortable and ergonomic low built seat.

Learn more

Isolated image of the GS seat.

GS seat
A highly adaptable seat for children and people of short stature.

Learn more

Isolated image of the BIS seat.

BIS seat
A seat with an integrated three-point seat belt.

Learn more

Compatibility Matrix

Our seats can be used with a majority of our Getting seated products, but there are a couple of exceptions. Use the matrix below to find which seats are available for each product.

  BEV Compact Recaro GS BIS
Turnout YES 2 YES 2 YES 2 YES 1+2 NO
Turny Manual 3
NO NO NO NO NO
Turny Low Vehicle
YES NO YES YES 1 NO
Turny HD/Orbit YES YES YES YES 1 NO
Turny Evo YES YES YES 1 YES 1 YES 4
Turny 6-Way YES 2 YES 2 YES 2 YES 1+2 NO

1. requires adapter plate
2. requires slide rails
3. only compatible with Carony
4. only available as a kit solution

Specifications

All the necessary data you need about our seats.

Schematic diagram with measurements points of seats.

  BEV BEV Kids Compact Recaro GS BIS
Length (L) 63 cm 54.5 cm 59 cm 60-64 cm 52-55 cm 63 cm
Width (W)
51 cm 51 cm 51 cm 54 cm 51 cm 51 cm
Height (H)
62 cm 62 cm  63 cm 65 cm 76 cm 69 cm
Height with headrest (N) 78-90 cm 78-90 cm  81-88 cm 80-85 cm 93 cm 85-92 cm
Depth (D)  47-52 cm

38.5-43.5 cm

48 cm 49,5-53,5 cm 22-45 cm 49 cm
Max recline (Q) 44° 44° 90° 90° 90° 90°
Weight 13 kg 13 kg 12 kg 18 kg 28 kg 19 kg

All dimensional measures taken at 20°-22° recliner angle.

L = Taken at H-point height, W = Widest part of seat, H = Height without headrest, N = Height including headrest, D = Taken at lumbar support, Q = Max possible recliner angle

The BEV seat superimposed over a faded image of a man and a woman using a seat lift.

BraunAbility BEV seat

Ergonomic low built seat, specially designed for easy individual adaptation

The BEV seat has been designed for fitting in combination with the Turny or the Turnout swivel seats whenever available space means that a seat of the low-level type would be a major benefit.

The BEV seat has another great advantage in that the flat sides of the cushion have easy-slide upholstery well suited to transfers to and from a wheelchair.

The cushions in the backrest and base are removable, beneath which a variety of extras such as torso or lumbar supports can be fitted. The cushions are easily removed from their Velcro fasteners for cleaning or replacement.

There are also a number of practical accessories that further adapt seat use by those with particular needs and wishes.

BEV Kids

The BEV seat is also available in a kids version, for children who need a shorter cushion or have other specific needs, such as a lower headrest.



Quick facts

  • Highly adaptable with many accessories
  • Low built
  • M1 approved

Seat options

Options to further individualise the comfort and performance of the seat.

Comfort headrest

Comfort headrest
Features two adjustable joints and a concave mid-section.

Head support

Head support
Provides extra support for the neck and reduces the risk of whiplash injury.

Kids headrest

Kids headrest
Suitable for children or people of short stature. Attaches to the seat's backrest.

armrest

Armrest
Adjustable in height and angle. Provides support for the arms.

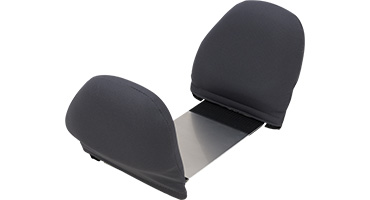

Side support

Torso support
Provides support to keep the body upright.

Lumbar support

Lumbar support
Pneumatic adjustable support for the lower back.

Seat cushion

Pressure relief seat cushion
Memory foam cushion provides improved pressure relief.

Universal strap

Universal elastic strap
Use on the chest, abdomen, thighs or lower legs.

2-point hip belt

2-point hip belt
Provides good support and prevents you from sliding forward in the seat.

4-point harness

4-point shoulder harness
Provides stability and keeps the body in an upright position.

Crossit positioning belt

Crossit positioning belt
A universal positioning belt system.

Careva positioning belt

Careva positioning belt
A highly configurable posture belt system.

Compatibility Matrix

Our seats can be used with a majority of our Getting seated products, but there are a couple of exceptions. Use the matrix below to find which seats are available for each product.

  BEV Compact Recaro GS BIS
Turnout YES 2 YES 2 YES 2 YES 1+2 NO
Turny Manual 3
NO NO NO NO NO
Turny Low Vehicle
YES NO YES YES 1 NO
Turny HD/Orbit YES YES YES YES 1 NO
Turny Evo YES YES YES 1 YES 1 YES 4
Turny 6-Way YES 2 YES 2 YES 2 YES 1+2 NO

1. requires adapter plate
2. requires slide rails
3. only compatible with Carony
4. only available as a kit solution

Specifications

All the necessary data you need about our seats.

Schematic diagram with measurements points of seats.

  BEV BEV Kids Compact Recaro GS BIS
Length (L) 63 cm 54.5 cm 59 cm 60-64 cm 52-55 cm 63 cm
Width (W)
51 cm 51 cm 51 cm 54 cm 51 cm 51 cm
Height (H)
62 cm 62 cm  63 cm 65 cm 76 cm 69 cm
Height with headrest (N) 78-90 cm 78-90 cm  81-88 cm 80-85 cm 93 cm 85-92 cm
Depth (D)  47-52 cm

38.5-43.5 cm

48 cm 49,5-53,5 cm 22-45 cm 49 cm
Max recline (Q) 44° 44° 90° 90° 90° 90°
Weight 13 kg 13 kg 12 kg 18 kg 28 kg 19 kg

All dimensional measures taken at 20°-22° recliner angle.

L = Taken at H-point height, W = Widest part of seat, H = Height without headrest, N = Height including headrest, D = Taken at lumbar support, Q = Max possible recliner angle

The Compact seat superimposed over a faded image of a man using the Chairtopper.

BraunAbility Compact seat

Economic low built seat.

Compact Seat is a safe and economical alternative to other more feature-rich car seats that are designed to blend in with the vehicle’s interior.

The optional Plus kit raises the front of the seat cushion which increases seating comfort and helps prevent users from sliding forward. We highly recommend this kit on all Compact Seat installations.

Quick facts

  • Blends in with the car interior
  • Adaptable with accessories
  • Optional Plus kit for increased seating comfort
  • Low profile
  • M1 approved

Please note
Compact Seat does NOT have a release catch that allows the backrest to fold forward.

Seat options

Options to further individualise the comfort and performance of the seat.

Comfort headrest

Comfort headrest
Features two adjustable joints and a concave mid-section.

Head support

Head support
Provides extra support for the neck and reduces the risk of whiplash injury.

armrest

Armrest
Adjustable in height and angle. Provides support for the arms.

Plus kit

Plus kit
Raises the front to provide extra pressure relief and prevents you from sliding forward.

2-point hip belt

2-point hip belt
Provides good support and prevents you from sliding forward in the seat.

4-point harness

4-point shoulder harness
Provides stability and keeps the body in an upright position.

Universal strap

Universal elastic strap
Use on the chest, abdomen, thighs or lower legs.

Crossit positioning belt

Crossit positioning belt
A universal positioning belt system.

Careva positioning belt

Careva positioning belt
A highly configurable posture belt system.

Compatibility Matrix

Our seats can be used with a majority of our Getting seated products, but there are a couple of exceptions. Use the matrix below to find which seats are available for each product.

  BEV Compact Recaro GS BIS
Turnout YES 2 YES 2 YES 2 YES 1+2 NO
Turny Manual 3
NO NO NO NO NO
Turny Low Vehicle
YES NO YES YES 1 NO
Turny HD/Orbit YES YES YES YES 1 NO
Turny Evo YES YES YES 1 YES 1 YES 4
Turny 6-Way YES 2 YES 2 YES 2 YES 1+2 NO

1. requires adapter plate
2. requires slide rails
3. only compatible with Carony
4. only available as a kit solution

Specifications

All the necessary data you need about our seats.

Schematic diagram with measurements points of seats.

  BEV BEV Kids Compact Recaro GS BIS
Length (L) 63 cm 54.5 cm 59 cm 60-64 cm 52-55 cm 63 cm
Width (W)
51 cm 51 cm 51 cm 54 cm 51 cm 51 cm
Height (H)
62 cm 62 cm  63 cm 65 cm 76 cm 69 cm
Height with headrest (N) 78-90 cm 78-90 cm  81-88 cm 80-85 cm 93 cm 85-92 cm
Depth (D)  47-52 cm

38.5-43.5 cm

48 cm 49,5-53,5 cm 22-45 cm 49 cm
Max recline (Q) 44° 44° 90° 90° 90° 90°
Weight 13 kg 13 kg 12 kg 18 kg 28 kg 19 kg

All dimensional measures taken at 20°-22° recliner angle.

L = Taken at H-point height, W = Widest part of seat, H = Height without headrest, N = Height including headrest, D = Taken at lumbar support, Q = Max possible recliner angle

The Recaro seat superimposed over a faded image of a car with a swivel seat facing the viewer.

Recaro Specialist L seat

Comfortable and ergonomic low built seat.

The Recaro Specialist L seat is a low built seat with a bucket seat cushion. Pull-out seat extensions together with robust side bolsters of the backrest ensure a comfortable and ergonomically correct driving position.

Quick facts

  • Blends in with the car interior
  • Excellent support for both legs and thighs
  • Adaptable with accessories
  • Low profile
  • M1 approved

Seat options

Options to further individualise the comfort and performance of the seat.

Comfort headrest

Comfort headrest
Features two adjustable joints and a concave mid-section.

Head support

Head support
Provides extra support for the neck and reduces the risk of whiplash injury.

armrest

Armrest
Adjustable in height and angle. Provides support for the arms.

Universal strap

Universal elastic strap
Use on the chest, abdomen, thighs or lower legs.

2-point hip belt

2-point hip belt
Provides good support and prevents you from sliding forward in the seat.

4-point harness

4-point shoulder harness
Provides stability and keeps the body in an upright position.

Crossit positioning belt

Crossit positioning belt
A universal positioning belt system.

Careva positioning belt

Careva positioning belt
A highly configurable posture belt system.

Compatibility Matrix

Our seats can be used with a majority of our Getting seated products, but there are a couple of exceptions. Use the matrix below to find which seats are available for each product.

  BEV Compact Recaro GS BIS
Turnout YES 2 YES 2 YES 2 YES 1+2 NO
Turny Manual 3
NO NO NO NO NO
Turny Low Vehicle
YES NO YES YES 1 NO
Turny HD/Orbit YES YES YES YES 1 NO
Turny Evo YES YES YES 1 YES 1 YES 4
Turny 6-Way YES 2 YES 2 YES 2 YES 1+2 NO

1. requires adapter plate
2. requires slide rails
3. only compatible with Carony
4. only available as a kit solution

Specifications

All the necessary data you need about our seats.

Schematic diagram with measurements points of seats.

  BEV BEV Kids Compact Recaro GS BIS
Length (L) 63 cm 54.5 cm 59 cm 60-64 cm 52-55 cm 63 cm
Width (W)
51 cm 51 cm 51 cm 54 cm 51 cm 51 cm
Height (H)
62 cm 62 cm  63 cm 65 cm 76 cm 69 cm
Height with headrest (N) 78-90 cm 78-90 cm  81-88 cm 80-85 cm 93 cm 85-92 cm
Depth (D)  47-52 cm

38.5-43.5 cm

48 cm 49,5-53,5 cm 22-45 cm 49 cm
Max recline (Q) 44° 44° 90° 90° 90° 90°
Weight 13 kg 13 kg 12 kg 18 kg 28 kg 19 kg

All dimensional measures taken at 20°-22° recliner angle.

L = Taken at H-point height, W = Widest part of seat, H = Height without headrest, N = Height including headrest, D = Taken at lumbar support, Q = Max possible recliner angle

The GS seat superimposed over a faded image of a child seated in a GS Seat.

BraunAbility GS seat

Highly adaptable seat for children and people of short stature.

On the GS Seat, almost everything can be individually adjusted, for example, the seat depth and the position of each armrest in all three dimensions. The GS Seat also has a wide number of accessories that will help further adapt the seat to a user’s specific needs.

Designed with the growing child in mind, the GS Seat can be adjusted to provide comfortable and safe seating.

Quick facts

  • Highly adaptable with many accessories
  • Can “grow” with the user
  • Easy to adjust for the caregiver
  • M1 approved

Please note
The GS seat is a full replacement for a vehicle seat and NOT a child car seat that you add on top. Therefore the GS Seat is not, nor should it be, tested to ECE R44 or ECE R129.

Please allow all cookies to watch this video.

Seat options

Options to further individualise the comfort and performance of the seat.

Headrest

Headrest
Replaces the standard headrest and extends the height of the seat for tall users.

Headrest, large sides
Provides more stability if needed.

armrest

Armrest
Adjustable armrests for comfort and stability.

Armrest table

Armrest table
A place to put things or get additional support when the armrests aren't enough.

Belt deflector
Helps achive proper seat belt geometry.

Chest padding
Improves comfort and prevents the posture belt from sliding apart.

Incontinence cover
Protects the seat cushion from liquid spills.

Lumbar
Adjustable lumbar support, penumatic.

Abduction block on child car seat

Abduction block
Keeps the users legs separated.

Footrest
Footrest with optional straps and heel support.

Compatibility Matrix

Our seats can be used with a majority of our Getting seated products, but there are a couple of exceptions. Use the matrix below to find which seats are available for each product.

  BEV Compact Recaro GS BIS
Turnout YES 2 YES 2 YES 2 YES 1+2 NO
Turny Manual 3
NO NO NO NO NO
Turny Low Vehicle
YES NO YES YES 1 NO
Turny HD/Orbit YES YES YES YES 1 NO
Turny Evo YES YES YES 1 YES 1 YES 4
Turny 6-Way YES 2 YES 2 YES 2 YES 1+2 NO

1. requires adapter plate
2. requires slide rails
3. only compatible with Carony
4. only available as a kit solution

Specifications

All the necessary data you need about our seats.

Schematic diagram with measurements points of seats.

  BEV BEV Kids Compact Recaro GS BIS
Length (L) 63 cm 54.5 cm 59 cm 60-64 cm 52-55 cm 63 cm
Width (W)
51 cm 51 cm 51 cm 54 cm 51 cm 51 cm
Height (H)
62 cm 62 cm  63 cm 65 cm 76 cm 69 cm
Height with headrest (N) 78-90 cm 78-90 cm  81-88 cm 80-85 cm 93 cm 85-92 cm
Depth (D)  47-52 cm

38.5-43.5 cm

48 cm 49,5-53,5 cm 22-45 cm 49 cm
Max recline (Q) 44° 44° 90° 90° 90° 90°
Weight 13 kg 13 kg 12 kg 18 kg 28 kg 19 kg

All dimensional measures taken at 20°-22° recliner angle.

L = Taken at H-point height, W = Widest part of seat, H = Height without headrest, N = Height including headrest, D = Taken at lumbar support, Q = Max possible recliner angle

The BIS seat superimposed over a faded image of a man using a seat lift in a van.

Please note
The BIS seat is only available as part of the kit Turny Evo BIS and can not be ordered separately.

BraunAbility BIS seat

A seat with an integrated three-point seat belt.

The BIS Seat is part of a kit solution consisting of the Turny Evo and a vehicle-specific mounting bracket.

This kit is designed for second-row installations in vans. With an integrated seat belt, when you move the Turny Evo, forward or backward, the belt moves with you, always maintaining that perfect seat belt geometry. This is important because wearing a seat belt correctly is what saves your life. It’s why children use a booster seat until they are big enough to get the proper seat belt geometry by themselves.

Additionally, the seat belt is close enough to reach when you're seated. A seat belt attached the C pillar in a van, can be hard if not impossible to reach when seated. Especially if rotating your upper body is painful or difficult.

As with all our seats, the BIS is crash-test approved to provide you with the best possible protection in the unfortunate event of a crash. Please note that the BIS Seat is currently only compatible with the Turny Evo.

The BIS Seat is a fully functional and comfortable car seat, available for both left and right side installations. Naturally, it comes with functions like adjustable backrest recline. The backrest can also be folded forward over the seat cushion if necessary. The BIS Seat can also be adapted with armrests if desired.

Quick facts

  • Continuously adjustable reclining backrest
  • Built-in belt deflection
  • Foldable backrest
  • Adaptable with accessories
  • Available for both left and right side installation
  • M1 approved
Please allow all cookies to watch this video.

Seat options

Options to further individualise the comfort and performance of the seat.

Head support

Head support
Provides extra support for the neck and reduces the risk of whiplash injury.

armrest

Armrest
Adjustable in height and angle. Provides support for the arms.

2-point hip belt

2-point hip belt
Provides good support and prevents you from sliding forward in the seat.

4-point harness

4-point shoulder harness
Provides stability and keeps the body in an upright position.

Universal strap

Universal elastic strap
Use on the chest, abdomen, thighs or lower legs.

Crossit positioning belt

Crossit positioning belt
A universal positioning belt system.

Careva positioning belt

Careva positioning belt
A highly configurable posture belt system.

Compatibility Matrix

Our seats can be used with a majority of our Getting seated products, but there are a couple of exceptions. Use the matrix below to find which seats are available for each product.

  BEV Compact Recaro GS BIS
Turnout YES 2 YES 2 YES 2 YES 1+2 NO
Turny Manual 3
NO NO NO NO NO
Turny Low Vehicle
YES NO YES YES 1 NO
Turny HD/Orbit YES YES YES YES 1 NO
Turny Evo YES YES YES 1 YES 1 YES 4
Turny 6-Way YES 2 YES 2 YES 2 YES 1+2 NO

1. requires adapter plate
2. requires slide rails
3. only compatible with Carony
4. only available as a kit solution

Specifications

All the necessary data you need about our seats.

Schematic diagram with measurements points of seats.

  BEV BEV Kids Compact Recaro GS BIS
Length (L) 63 cm 54.5 cm 59 cm 60-64 cm 52-55 cm 63 cm
Width (W)
51 cm 51 cm 51 cm 54 cm 51 cm 51 cm
Height (H)
62 cm 62 cm  63 cm 65 cm 76 cm 69 cm
Height with headrest (N) 78-90 cm 78-90 cm  81-88 cm 80-85 cm 93 cm 85-92 cm
Depth (D)  47-52 cm

38.5-43.5 cm

48 cm 49,5-53,5 cm 22-45 cm 49 cm
Max recline (Q) 44° 44° 90° 90° 90° 90°
Weight 13 kg 13 kg 12 kg 18 kg 28 kg 19 kg

All dimensional measures taken at 20°-22° recliner angle.

L = Taken at H-point height, W = Widest part of seat, H = Height without headrest, N = Height including headrest, D = Taken at lumbar support, Q = Max possible recliner angle

Contact your local dealer for a demonstration of our products.
Click here to find your local dealer.
