A-Series

BraunAbility A-Series

A cassette lift for public transport minibuses.

We have a Hulk

The BraunAbility A-series lift was developed in Europe for the European public transport market. Key focus lies on quick installation, low weight, reliability and ease of service.

The cassette form factor has its benefits. For one, since it is mounted under the floor, it allows for maximum flexibility in floor planning. In the event of an emergency, another type of lift could be a potential obstruction to the only exit.

At 124 kg, 149 kg fitted, it’s the lightest lift on the market that can do a stable lift of 350 kg. In other words, it has the lowest weight to lift ­capacity which also makes it the green choice in terms of fuel economy. Depending on the vehicle, a lightweight lift might be just the trick to get that one extra seat in - and still comply with regulations.

Features
Through hardships onto the road.

We wanted our lift to take everyone into consideration. From the converter and the specifier, to the driver and the passenger. We've put it through tests, made it lightweight, designed it to be easy to operate and for the passenger to feel safe using the lift.

Learn more


Installation
Easy as 1, 2, 3.

Mounting brackets that utilise the chassis existing hole pattern, for all major brands. Quick connections for fluids and power. A pump module designed to take up as little volume as possible.

These are some of the features we've come up with to make the installation process quick and to provide a space efficient result.

Learn more


Testimonials

What do our customers think of the BraunAbility A-series lift?

Olmedo Special Vehicles
Italy

Learn more

Aros Buss
Sweden

Learn more

Reliability
Through hardships onto the road

For us, a reliable lift is one that will do its job regardless if it is used several times a day or just once a year. It should be able to withstand the wear and tear that comes with public transport; dirt, water, extreme temperatures as well as the passage of time.

Tested and approved

  Salt spray test
According to ASTM B117-11

  Climate test
Multiple full cycle tests in -15°C and +60°C

  Cycle test
32,000 cycles at maximum load

  EMC test
According to ECE-R10

The BraunAbility A-series lift complies with the EN1756 standard.


Lightweight
Leading capacity-to-weight ratio.

We've focused on making our lift as light and as strong as possible, but why? Well, when you put a significant amount of weight behind the rear wheel axle it changes how the vehicle behaves, quite a lot. A heavy rear load could cause oversteering and other issues that makes driving the vehicle an unnerving experience.

Also, depending on the vehicle, a lightweight lift might be just the trick to get that one extra seat in - and still comply with regulations.

Another benefit of low weight is of course fuel consumption. Not just from an economic perspective, but even more important, keeping the environmental impact down to an absolute minimum.

BraunAbility A-Series
350kg / 149kg = 2.35
Lift manufacturer 1
300kg / 170kg = 1.76
Lift manufacturer 2
300kg / 170kg = 1.76
Lift manufacturer 3
350kg / 202kg = 1.73
Lift manufacturer 4
300kg / 180kg = 1.66

The comparison shows lifting capacity divided by fitted weight. The data was acquired in April 2016 from the marketing material of each respective manufacturer.



Design
So fresh and so clean

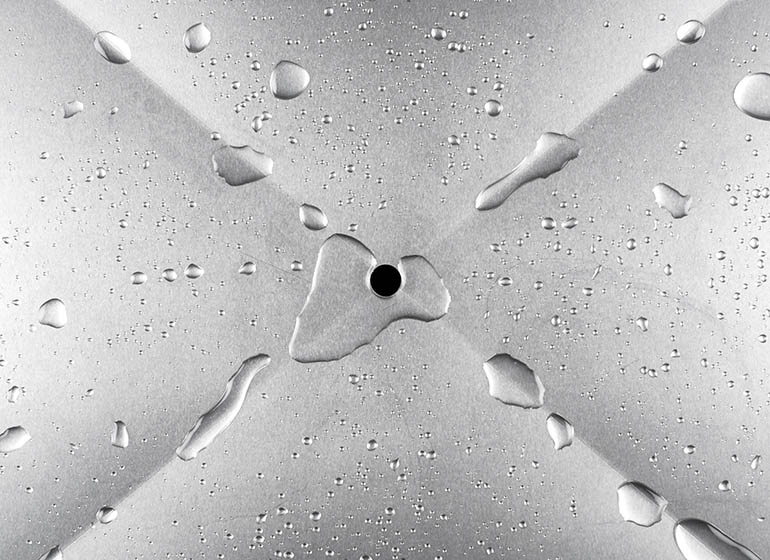

Grit and grime in mechanical devices can be just as bad as the proverbial spanner in the cogs. But you can’t really ask your passengers to thoroughly clean their wheels each time you intend to use the lift. We’ve designed and tested our A-series lift to minimize the effects of dirt in the machinery. It should work even if you were to shovel gravel into its innards, figuratively speaking.



  Compatible avec notre Remote App


Remote
At the tip of your fingers.

For simplicity only three buttons are used to control the lift. Clear visuals on each button indicates its function(s).

One button to stow the lift.
One button to deploy and raise the lift.
One button to lower the lift.



Anti-slip surface
Anti-slip surface on the platform and bridge plate, for the safety of both wheelchair users and standees.

Sturdy handrails
Highly visible and sturdy handrails, that user and operator can rely on.

Manual bridge plate
Unfold manually when the lift is deployed and fold back manually when stowing the lift. No handling needed in between.

Smooth and silent in operation
Providing a comfortable experience for user and operator.

Easy as 1, 2, 3

Taking into account that wiring and hydraulics are similar in all cassette lifts, we dare boast that no other lift is as quick to install as ours. It’s all done in three easy steps.

.

1. Vehicle specific mounting brackets
Each vehicle specific mounting bracket uses the vehicle’s existing hole pattern. This means that you don’t need to drill holes or do complex measuring. Simply find the corresponding holes and bolt the brackets into place.

2. Purpose designed packaging
The A-series lift itself arrives on a pallet with wooden tansport brackets. Remove the transport brackets, then use a forklift to lift the pallet and position the lift between the mounting brackets. In order to get as close as possible to the rear axle, the lift is placed slightly off centre on the pallet.

3. Adjust and tighten
When the lift is in the correct position between the mounting brackets, insert and tighten the bolts in the mounting brackets and their counterparts found in the groove along the cassette side. This design makes it possible to easily adjust the position of the lift if desired. In vehicle models where the wheel axis allows, the lift can either be installed flush with the back of the vehicle or protruding, in order to be used as a step.



Compatibility

Brackets for all major brands

For quick and easy installation, we have mounting brackets for a majority of the minibuses available today. Our mounting brackets use the existing hole pattern in each specific chassis. In other words, you do not have to drill any holes in order to attach our cassette lift to the vehicle.

To ensure that the lift is level, the inner most bracket hole is circular and works as a hinge, whilst the others are slotted, allowing adjustment of the lift angle.





Mounting brackets and installation quick guides available for:
Mercedes-Benz, Volkswagen, Ford, Peugeot, Fiat, Citroën, Iveco, Renault, Opel, Nissan.


Pump module
Pump up the volume.

One of the best reasons to use a A-series lift instead of any other type of lift is that you don’t have to sacrifice the number of seats to install a lift. However the pump module usually takes at least one seat. We designed our pump module to be as thin as possible and to be partially hidden behind the panel of the vehicle, so that it takes up even less space.

Within these walls
Another perk that comes with placing the pump module partly hidden in the vehicle’s wall is that it can be placed where space and seating efficiency as well as usage efficiency is at an optimum level – in the back close to the lift. Quite convenient if the driver needs to manually operate the lift in the event of a power failure in the vehicle.


Service and repair
A quick fix

Is your lift damaged? A spare lift can easily replace the damaged one thanks to the mounting bracket and quick release connections for the fluids and electronics. Your vehicle could be back on the road within the hour. The A-series lift has been designed to use only relays and switches, most of them so common, you can find them at your local petrol station.


Italy
Olmedo Special Vehicles

"It may look simple, but you can tell that there is a lot of thought behind it. Actually, I’m really impressed with how quick and simple they made the installation process of this lift. It only took a fraction of the time to install compared with the other cassette lifts we use in our vehicles."

Luca Quintavalli
CEO & Owner, Olmedo Special Vehicles S.p.A



Sweden
Aros Buss

"I have 13 years behind the wheel as a bus driver for passengers seated in wheelchairs. On a normal day, I'd say that I do maybe 18-20 runs, using the lift twice as much. In my opinion it's a really good lift. It's easy to use and I can rely on it to lift me and my passengers safely into the bus each and every time. Perhaps my favourite part is the fact that it is easy on the body, even though there are some parts you have to do manually, I don't really do any heavy lifting at all."

Carina Tångring Petterson
Bus driver, Aros Buss



Spain
Indcar


Scotland
JNS Lift

"It’s working well for the work we do, it’s easier to use than the other models we have and not as heavy. We have had no problems with this lift and would be happy to use this model when any of our other tail-lifts need to be replaced."

Margaret Urie
Transport Co-ordinator, South West Community Transport

The BraunAbility A-series lift mentioned above was installed in June 2015 by JNS Lift Ltd in Scotland for their client South West Community Transport in Glasgow. The estimated usage of the lift since installation is 3-4 times a week.

Dimensions

Length 1220 mm
Width 1050 mm
Height 140 mm
Platform length 1225-1360 mm
Platform width 800 mm
Minimum door width 820 mm
Minimum overlap 20 mm

Performance

Floor to ground 1075 mm
Maximum travel up 430 mm
Minimum travel up 130 mm
Maximum travel down 645 mm

Noise level

During use  < 70 dB

Weights

Weight capacity 350 kg
Cassette weight 124 kg
Fitted weight 149 kg
Shipping weight 168 kg

Power

Voltage 12 V
Current 80 A

Testing

Cycle test approved (32,000)
Salt spray test approved
EMC test approved
E5 Type approved
Climate test approved

Homologations

Conforme à la norme EN 1756
Conforme à la norme ECE R-10
Conforme à la norme REACH
Conforme à la norme GADSL
Conforme à la norme RoHS
Conforme à la norme 3TC
